Car Parking Shade Site Survey and Measurement Checklist

Published 21 October 2026 · Site planning checklist

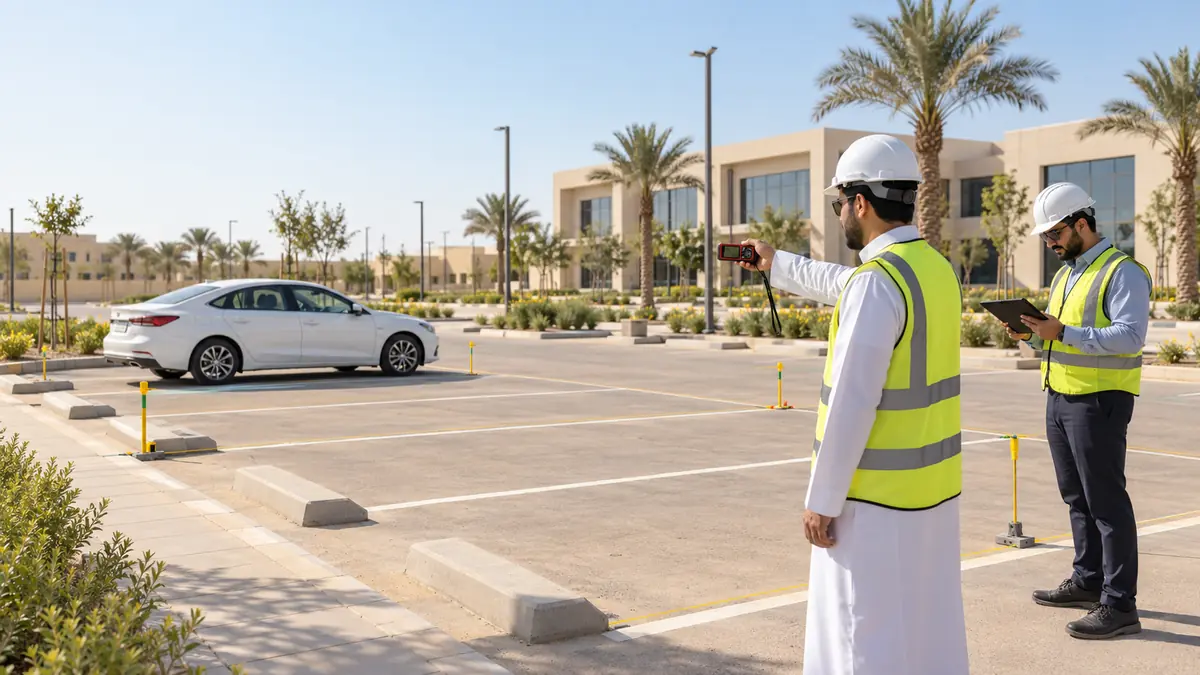

A useful car parking shade quotation starts with reliable site information. The survey should show what needs covering, where vehicles and people move, where columns may be considered and which existing features could affect the work. A bay count alone cannot answer those questions.

This checklist helps owners, facilities teams, consultants and contractors prepare a clearer survey brief for parking shade projects in Saudi Arabia. It does not replace a project-specific topographic, utility, boundary or engineering survey where one is required.

Start with the purpose of the survey

Define the decision the information must support. An early quotation may need a marked layout, principal dimensions, photographs and the required number of covered bays. A final design or consultant submission may need more controlled information, including levels, service records, boundaries and verified reference points.

Tell the shade contractor whether the project is a new parking area, an addition to an operating facility or a replacement of an existing structure. Identify the project city, site contact, operating restrictions and the current drawing revision. Our quotation request checklist explains the other information that can accompany the survey.

Record the complete parking layout

Measure the parking rows and the surrounding area, not only one painted bay. Record the number and arrangement of bays, row lengths, bay lines, drive aisles, entrances, exits and turning areas. Show wheel stops, kerbs, islands and changes in paving. Note whether vehicles park nose-in, reverse-in or in another arrangement used by the facility.

The proposed shade footprint may extend beyond the painted lines to provide useful coverage. That extension must still be coordinated with circulation, boundaries, buildings and other site features. Do not assume a preliminary bay dimension is the final canopy size.

Identify possible column zones and no-column zones

Mark areas where supports may be considered and areas that must remain clear. Vehicle doors, pedestrian routes, accessible parking, ramps, crossings, loading zones, fire access, gates and maintenance routes can all affect column positions. A support that fits on a simple sketch may create an obstruction when the site is operating.

For cantilever layouts, confirm which edge can receive the support line and whether a single or double arrangement fits the parking rows. The single and double cantilever comparison gives a practical overview, but the final arrangement must follow the surveyed site and approved design.

Capture heights and overhead constraints

Record relevant clearances at building edges, gates, signs, light poles, trees, existing canopies and overhead services. Identify the vehicles expected to use the area, especially if service vehicles or vehicles with roof-mounted equipment need access. Do not set a final clear height from photographs alone.

Where the ground level changes, record enough level information for the project team to understand the difference across the proposed shade line. Sloping or stepped parking areas can affect column heights, roof geometry, drainage and the relationship between adjacent modules.

Check the ground and visible civil interfaces

Describe the visible surface, such as asphalt, concrete, interlock paving or an unpaved area. Mark kerbs, channels, manholes, trenches, drainage inlets and repaired areas. Photographs should show both the overall parking row and close views of important interfaces.

A surface inspection does not confirm what lies below ground. Existing drawings, utility records and the client’s permit or excavation process should be reviewed where relevant. If underground services, property limits or existing foundations are uncertain, identify that uncertainty before foundation positions are finalized. The required investigation must be agreed by the responsible project parties.

Separate measured facts from assumptions

Label dimensions according to their source. Distinguish site measurements from dimensions copied from an old drawing, estimated from a photograph or supplied verbally. Add the survey date, drawing reference, units and the person or organization that prepared the information.

Use one reference system consistently. If measurements are taken from a kerb, wall or grid line, identify that reference clearly. Close the main dimension strings where practical so obvious differences can be found before design work begins. A laser distance meter or digital tool can improve efficiency, but the output is only useful when the correct points have been measured and recorded.

Take photographs that explain the measurements

Begin with wide views showing each parking row and its relationship to access roads and buildings. Then take closer views of kerbs, services, walls, level changes and possible support zones. Number the photographs or mark their viewing direction on the layout so another reviewer can understand where each image was taken.

Avoid relying on photographs with no scale or location reference. Images help explain the site, but they do not replace stated dimensions. If the facility restricts photography, agree an approved method for recording the required project information.

Coordinate drainage and existing equipment

Show visible surface falls, channels, inlets and areas where water collects, if known. For a rain-covering canopy, identify where runoff may be directed and which party is responsible for any gutters, downpipes or connection to site drainage. Read the rain cover and drainage checklist before defining that scope.

Mark existing lights, cameras, signs and other equipment near the proposed shade. Umbrella Tent & Shades does not provide electrical, lighting, CCTV or related services. Clients must appoint separate qualified contractors for those works; the equipment locations can still affect the shade layout and coordination. Do not treat a column or beam as an approved mounting point unless the proposed attachment has been reviewed.

Information to place on the survey sketch

• Project name, city, survey date and current drawing reference.
• Parking rows, bay count, key dimensions and driving direction.
• Entrances, exits, drive aisles and turning or loading areas.
• Pedestrian routes, crossings, ramps and accessible parking spaces.
• Kerbs, islands, wheel stops, walls, fences and building edges.
• Visible services, manholes, drains, poles, trees and overhead constraints.
• Possible support zones and areas that must remain free of columns.
• Ground surface, notable level changes and any known site restrictions.
• Photograph numbers and viewing directions.
• Items that remain unverified or require confirmation by another party.

Review the survey before design approval

Compare the survey against the proposed layout, quotation scope and latest drawings. Check that the same bay quantity, covered rows and reference dimensions appear throughout the documents. Confirm whether civil works, excavation, foundations, reinstatement and service checks are included or assigned to others.

Any revised site information should carry a new revision and date. Do not continue using an earlier sketch after the parking arrangement or site conditions have changed. Our drawing review checklist helps connect the surveyed site to the approval drawings.

Request a site-specific quotation

Umbrella Tent & Shades provides car parking shade design, fabrication and installation across Saudi Arabia from Dammam. Send the project city, marked parking layout, dimensions, photographs and any client or consultant specification to info@umbrellatentshades.com, or use the quotation form. We’ll review the available information and confirm what else is needed for a clear quotation. For a quick response, message us on WhatsApp.
